PRESION
GARANTIZADA
GUARANTEED PRESSURE |
0.1MICRON
(McLEOD GAUGE)
0.0001 mm Hg (1x10-4
TORR) |
|

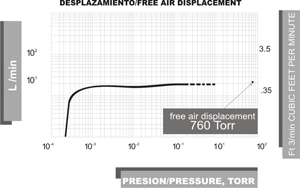

DESPLAZAMIENTO
EN VACIO
FREE AIR DISPLACEMENT |
25
L /min
0.9 cfm |
|
ETAPA/
STAGES 2
|
PESO
NETO/ NET WEIGTH
kg15
|
|
MOTOR
hp 1/3 |
BOMBA
MONTADA/ MOUNTED PUM kg 26
|
|
BOMBA/
PUMB r.p.m 580 |
PESO
EMBARQUE/SHIPPING WEIGHT 30Kg |
|
MOTOR
r.p.m
1725 |
DIMENSIONES
cm 43x23x33 |
|
MOTOR
v 120 |
FILTRO
SALIDA/ MUFFLER FILTER STANDAR |
|
TRANSIMISION/
DRIVE
BV/VB
1 |
VALVULA
VENTEO/ VENTED EXHAUST STANDAR |
|
ACEITE/OIL
L
0.59 |
CUBRE
BANDA/ BELT GUARD STANDAR
|
