PRESION
GARANTIZADA
GUARANTEED PRESSURE |
0.1
MICRON (McLEOD GAUGE)
0.0001 mm Hg (1x10-4
TORR) |
|

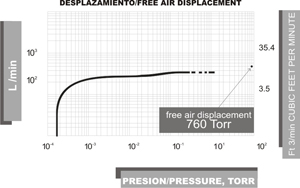

DESPLAZAMIENTO
EN VACIO
FREE AIR DISPLACEMENT |
500
L /min
17.7 cfm |
|
ETAPA/
STAGES 2
|
PESO
NETO/ NET WEIGTH
kg63
|
|
MOTOR
hp 1 1/2 |
BOMBA
MONTADA/ MOUNTED PUM kg 93
|
|
BOMBA/
PUMB r.p.m 400
|
PESO
EMBARQUE/SHIPPING WEIGHT102Kg |
|
MOTOR
r.p.m
1725 |
DIMENSIONES
cm 66x35x48 |
|
MOTOR
3fases/
3 phases v 220 |
FILTRO
SALIDA/ MUFFLER FILTER STANDAR |
|
TRANSIMISION/
DRIVE
BV/VB
2 |
VALVULA
VENTEO/ VENTED EXHAUST STANDAR |
|
ACEITE/OIL
L
1.2 |
CUBRE
BANDA/ BELT GUARD
STANDAR |
