PRESION
GARANTIZADA
GUARANTEED PRESSURE |
2
MICRON (McLEOD GAUGE)
0.002 mm Hg (2x10-3
TORR) |
|

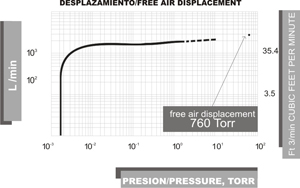

DESPLAZAMIENTO
EN VACIO
FREE AIR DISPLACEMENT |
2800
L /min
100 cfm |
|
ETAPA/
STAGES 2
|
PESO
NETO/ NET WEIGTH
kg175
|
|
MOTOR
hp 7 1/2 |
BOMBA
MONTADA/ MOUNTED PUM kg
282 |
|
BOMBA/
PUMB r.p.m 470
|
PESO
EMBARQUE/SHIPPING WEIGHT 313Kg |
|
MOTOR
r.p.m
1725 |
DIMENSIONES
cm 112x54x90 |
|
MOTOR
3fases/
3 phases v 220 |
FILTRO
SALIDA/ MUFFLER FILTER STANDAR |
|
TRANSIMISION/
DRIVE
BV/VB
3 |
VALVULA
VENTEO/ VENTED EXHAUST STANDAR |
|
ACEITE/OIL
L
2.5 |
CUBRE
BANDA/ BELT GUARD STANDAR
|
